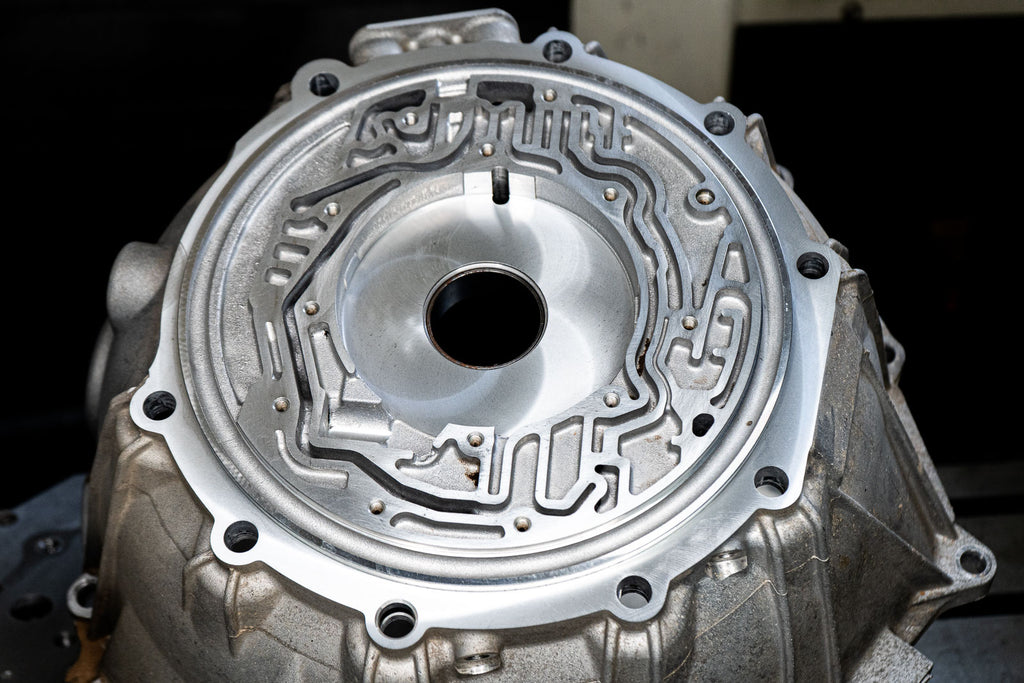

6L80/90 Reman Bellhousing

Restore precision and reliability with our reman 6L80/90 bellhousing. At Yellowjacket Machine, we don’t just resurface — we fully recondition the critical mating surfaces, and clearance areas to factory specifications (or better).

What We Do:

• Top face resurfacing — We machine the bellhousing’s top surface flat to prevent misalignment and ensure even load across the mating face.

• Pump pocket restoration — The internal pocket is precision-machined to OEM depth, ensuring perfect fit for rotor, slide, and vanes without interference.

• Outer flange face resurfacing — The external bolt flange is faced in relationship with the top and pump pocket to ensure a perfect fit.

• Spring cavity relief — We remove material around the spring area to make sure there is zero interference under load — no rubbing, no binding.

• Inspection & final tolerances — Every housing is measured and verified before shipping so it meets tight tolerances in all axes.

Why Choose Our Reman:

• Extends transmission life

• Prevents internal leaks and catastrophic failures

• Precision CNC machined in-house makes cost competitive

• Compatible with stock and performance builds

• Built in the USA, with precision craftsmanship

Technical Specs:

• Materials: OEM cast housing (reman)


• Finish: machined to a fine surface with chip removal relief

• Return: core required (if applicable)

Bring your worn or damaged bellhousing back to life — exactly aligned, exactly flat, and built to last.
